Laboratory equipment

Planetary ball mill «Activator - 4M»

Planetary ball mill «Activator - 4M» belongs to the laboratory equipment. At the same time,
«Activator - 4M» is designed  to mill and  to produce of small batches of powder materials,
to  carry out  mechanochemical  reactions  and  activation  of materials.   The increased
volume and the number of jars  can handle up to 2000 grams in one grinding.
-  Centrifugal acceleration  up to 150 G.

-  Impact- and shift grinding mode is.

-  Continuous operation time is to several hours.

-  Computer control (USB) is.

-  Productivity is to 1.5 tons per month.
The jars 4 of 1000 ml
Ball charge 600 - 1400 g
Material charge 50 - 400 g
Rotational speed of the planetary disc 100 - 800 rpm
Rotational speed of jars 150 - 1200 rpm
Power 18 kW·h
Dimensions of mill, mm:
length*width*height 940*695*1150
Mass of mill 390 kg
Laboratory planetary  ball  mill  «Activator - 4M» retains  all  the  advantages  of  other  planetary  mills
«Activator». In the mill  «Activator - 4M»,  powders can produce  with a particle size up to several
nanometers.
With  a  high-intensity   treatment,  it  can  pass  mechanochemical   reaction,  SPS synthesis  and
mechanical  alloying. Processing  of  materials  in mill (so-called  activation of the material) can further
decrease the reaction temperature  and  increase  the  depth  of  the  passage.
Corundum  and  hard alloy  jars  will help avoid rubbing of iron if its presence interferes with further work
with  the  material.
Temperature  control and cooling  water  will prevent overheating of jars when it is undesirable for any
reason.  Water  cooling  will  provide  continuous  operation  mill  as you  need.

Standard delivery set of laboratory mill

Options

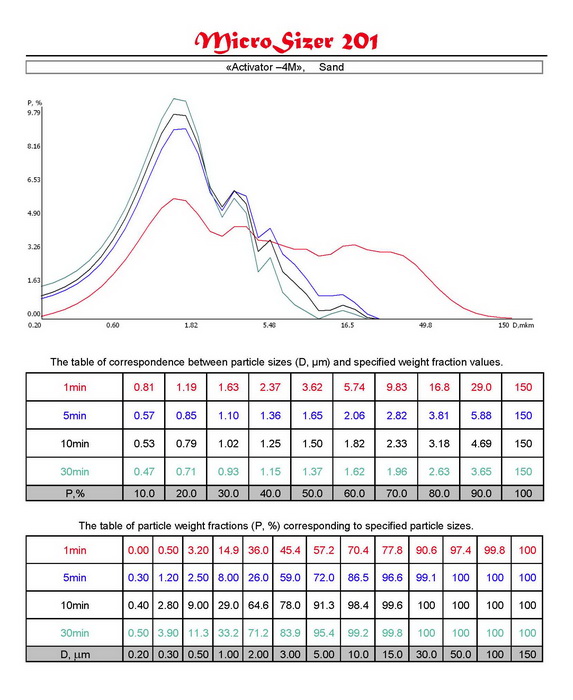

Results from grinding of materials to mill in
«Activator - 4M»

All photos «Activator - 4M»
